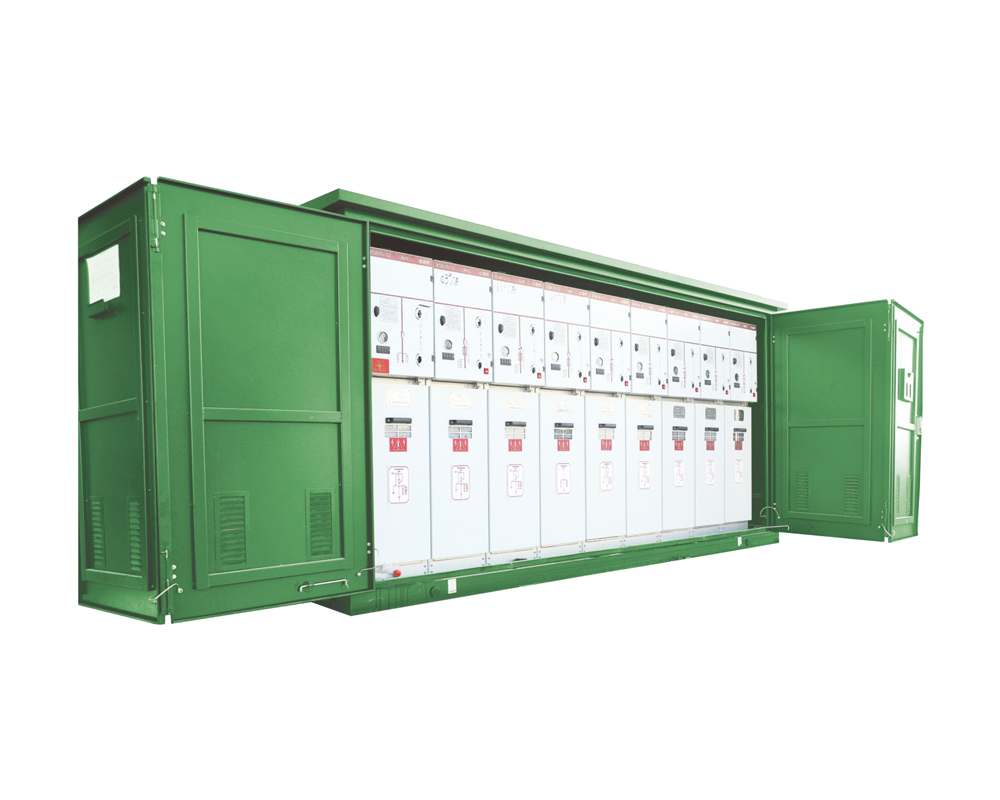

Product Overview

DFWK outdoor switchgear adopts prefabricated live touchable silicone rubber cable heads, fully sealed, fully insulated, maintenance free, and reliable to ensure personal safety; Compact structure, compact and beautiful appearance, stainless steel double-layer box, with a service life of over 20 years; Without affecting the operation of the main network. Widely used in urban power grid renovation, residential communities, commercial centers and other densely populated areas. Implement regional power outage maintenance to reduce the scope of power outages; Can be equipped with one or more SF6 load switches. The wiring methods are flexible and diverse, with a maximum of eight branch lines. Optional lightning arresters, short-circuit fault indicators, current limiting fuses, etc. are available to meet various user requirements.

Features and Characteristics

● Adopting prefabricated live touchable silicone rubber cable heads, fully sealed, fully insulated, maintenance free, and reliable to ensure personal safety.

● Compact structure, compact and beautiful appearance, stainless steel double-layer box, with a service life of over 20 years.

● Realize regional power outage maintenance and reduce the scope of power outages without affecting the operation of the main network.

● Can be equipped with one or more SF6 load switches. The wiring methods are flexible and diverse, with a maximum of 8 branch lines.

● Optional lightning arresters, short-circuit fault indicators, current limiting fuses, etc. are available to meet various user requirements.

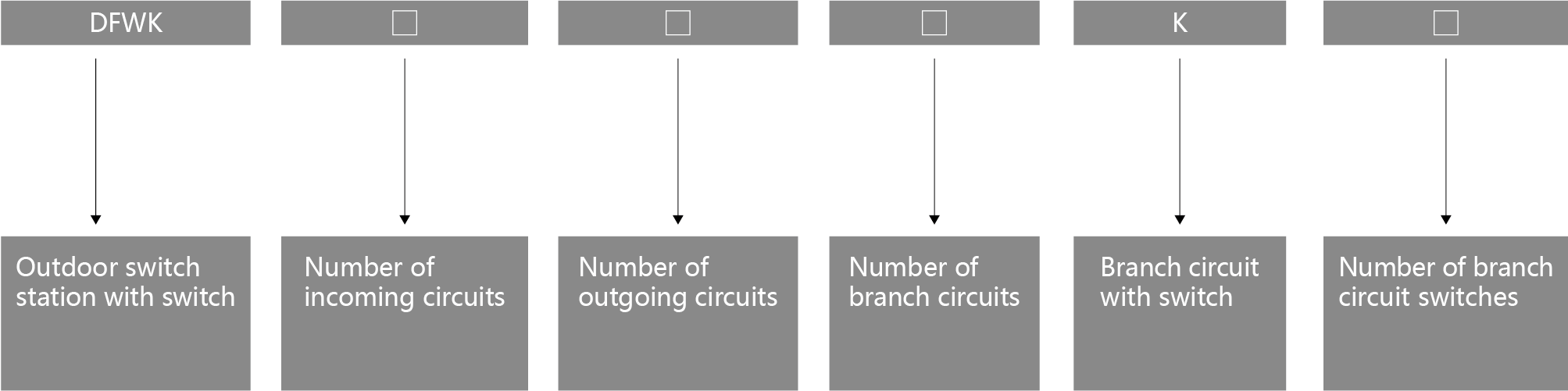

Model and its meaning

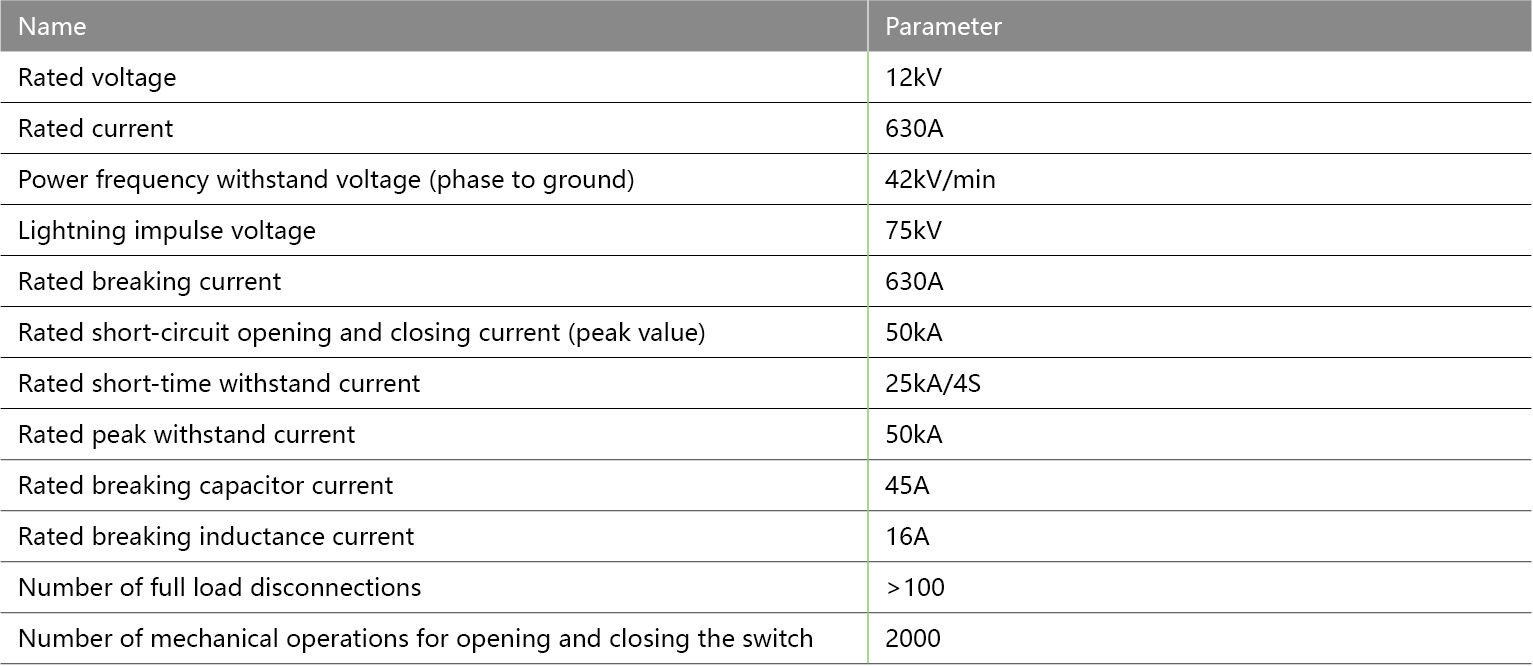

Main technical parameters

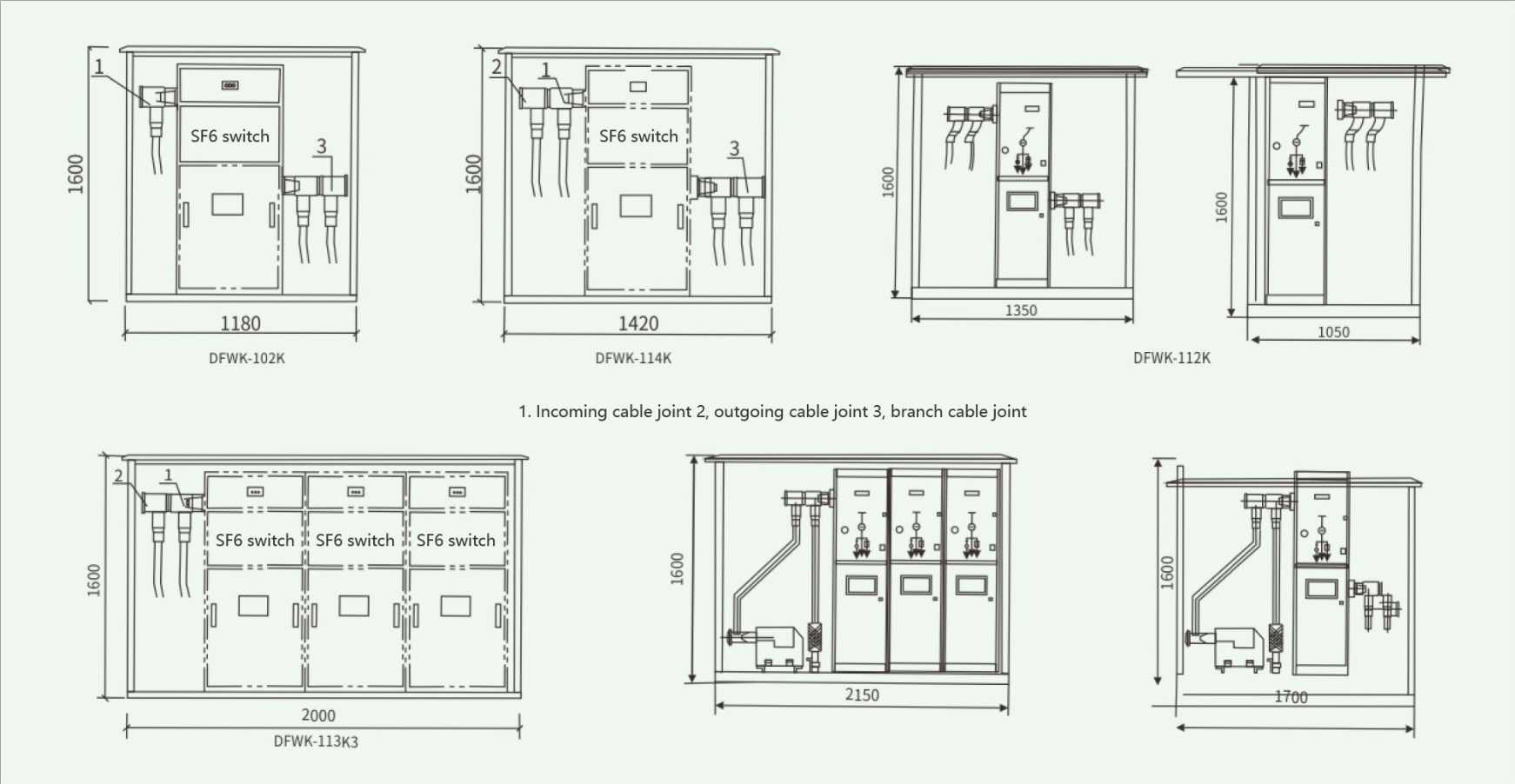

Outline diagram
