Product Overview

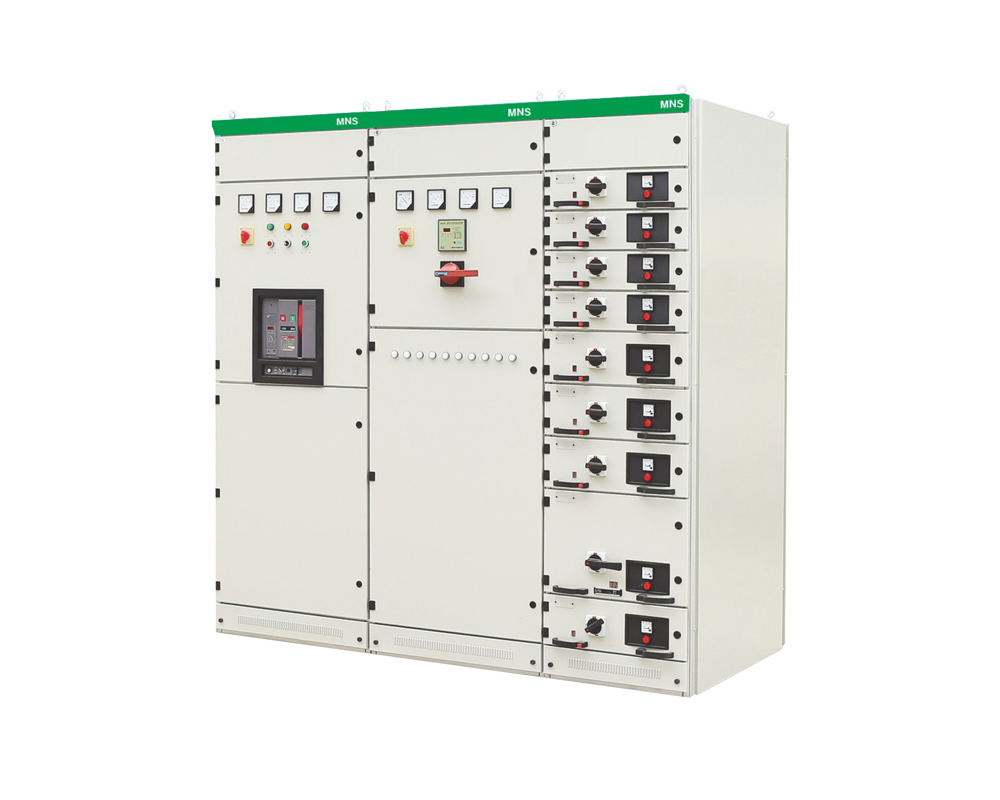

MNS is a modular and multifunctional low-voltage distribution cabinet. Applied to all low voltage systems that require high reliability in metallurgy, petroleum, chemical, industrial and mining enterprises, and infrastructure fields: distribution and motor control systems.

The cabinet structure used by MNS has a high degree of flexibility.

According to your needs or different usage scenarios, various types and specifications of components can be installed in the cabinet; According to different electrical equipment, multiple types of feeding units can be installed in the same cabinet or cabinet. For example, the feeding circuit and the motor control circuit can be mixed together.

MNS is a full range of low-voltage switchgear that can meet your comprehensive needs. Suitable for all low-voltage systems below 4000A. MNS can provide a high level of reliability and safety. Humanized design enhances the protection required for personal and equipment safety. MNS is a fully assembled structure, with its unique profile structure and connection method, as well as compatibility with various components, which can meet the requirements of demanding construction periods and power supply continuity.

Execution standards: IEC439, GB7251.1.

Normal usage conditions

● Application scenarios: power distribution, motor control

● Execution standards: lEC439, GB7251 1

● Environmental temperature: -5 ℃~40 ℃

● When the relative humidity of the environment is 40 ℃, it should not exceed 50%. At lower temperatures, higher relative humidity is allowed, and condensation may occur accidentally (such as 90% at 20 ℃)

● Installation location: Indoor

● Altitude: ≤ 2000m

● If the above conditions cannot be met, the user should raise the issue with the manufacturer when placing an order.

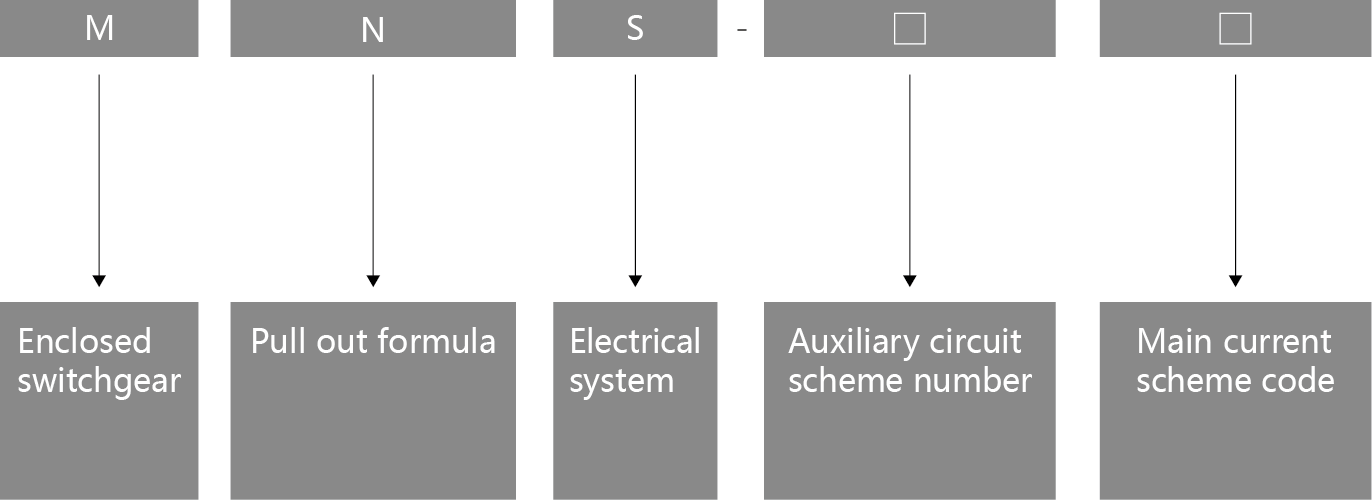

Model and its meaning

Main technical parameters

● Entry and exit form: cable/bus duct (bridge)

● Cable entry and exit: top/bottom

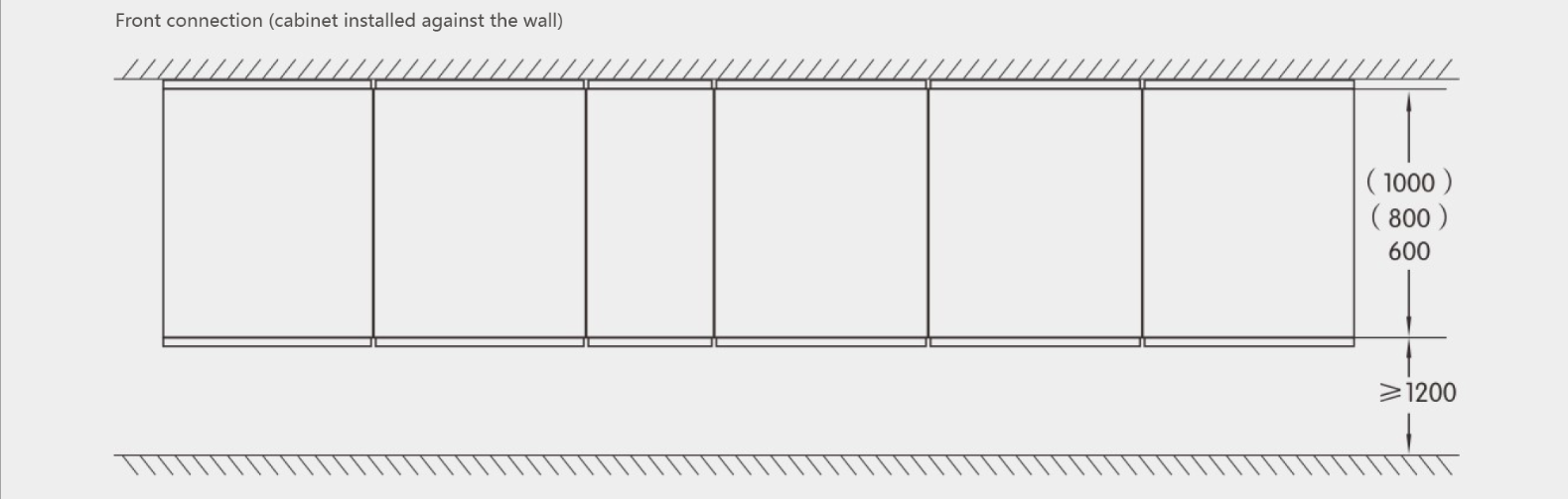

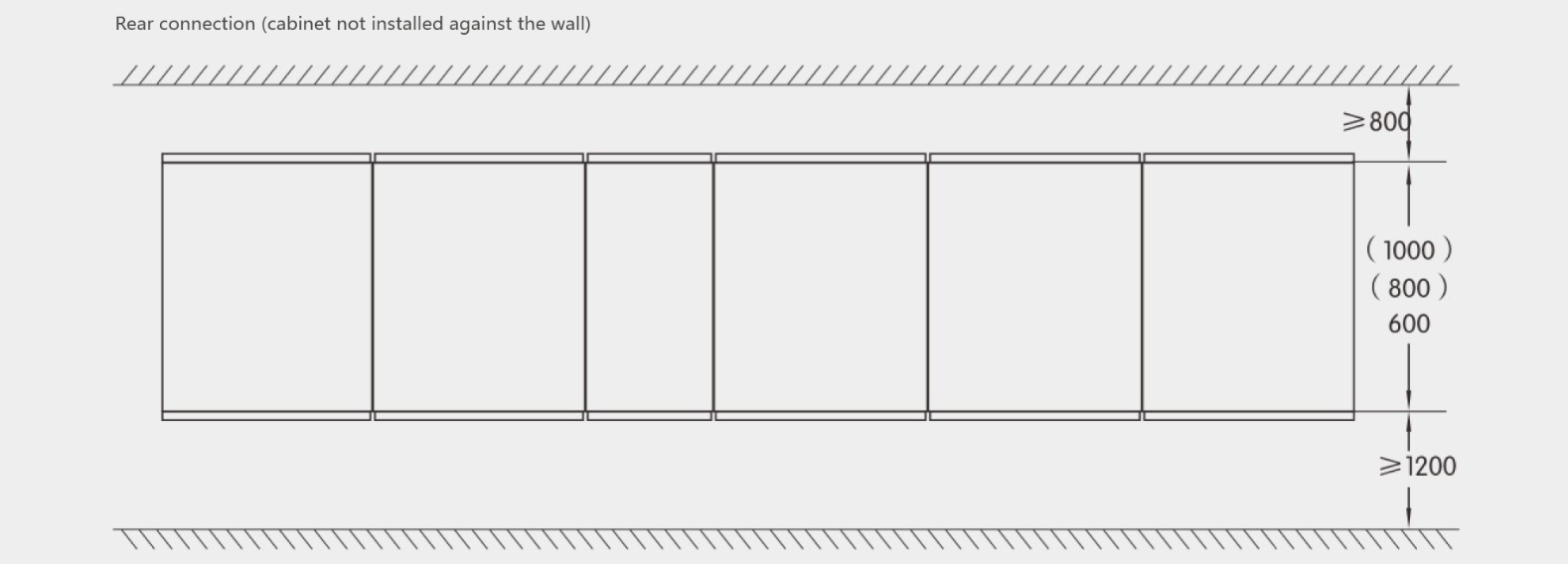

● Wiring form: front/back of cabinet

● Protection level: IP30, IP40, IP54

● Functional unit isolation form: full isolation or partial isolation

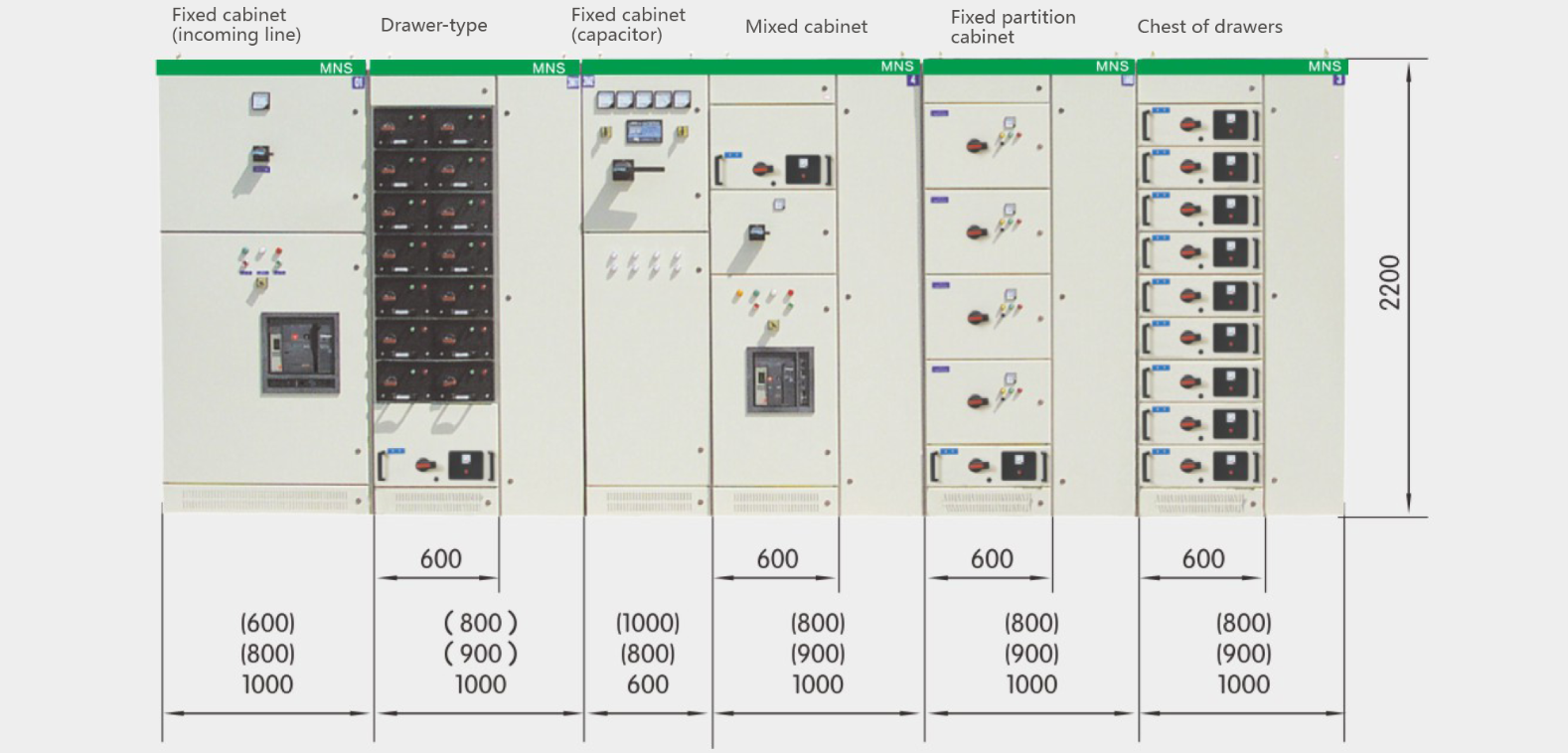

● Cabinet dimensions

○ Height: 2200mm

○ Width: 600mm, 800mm, 900mm, 1000mm

○ Depth *: 600mm, 800mm, 1000mm

○ Surface treatment: High voltage electrostatic epoxy powder I spraying>60 μ

● Horizontal busbar

○ Rated short-time withstand current: 50/80KA

○ Rated peak withstand current: 105/176KA

● Vertical busbar

○ Rated short-time withstand current: 50kA

○ Rated peak withstand current: 105kA

● Grounding system: TT, IT, TN-S, TN-C-S

● Most human input and output circuit breaker: 4000A

● Electrical data

○ Rated insulation voltage: up to 1000V

○ Rated T operating voltage: up to 660V

○ Rated frequency: 50/60Hz

○ Rated impulse withstand voltage: 8kV

○ Rated power of auxiliary circuit J soil: AC380, 220V/DC220V

○ Electric music level: III

○ Pollution level: 3

○ Rated current: 4000A

○ Rated current of water half busbar: 4000A

○ Rated current of vertical busbar: 2000, 1000A.

○ The cabinet with glass doors has a minimum depth of 725mm.

○ For the convenience of laying horizontal busbars, the depth of cabinets in the same arrangement of systems should be uniform. If not unified, a 400mm wide busbar adapter cabinet should be added at each connection.

○ Cabinets with busbar bridges or busways for incoming and outgoing lines should have a depth greater than 800mm.

* For products with special requirements, please consult our company

Product functional features

● In order to facilitate the installation of equipment and on-site construction, a dedicated cable channel is provided in the distribution cabinet, and corresponding cable fixing components are attached.

● The drawer unit has accurate positioning and clear indication at each position, and can be locked with up to 3 padlocks at each position.

● The special profile structure and connection method ensure the strength of the cabinet.

● The drawer unit adopts contact wires to directly connect with the "L" - shaped vertical busbar, which is simple and reliable.

● The unique 3-section guide rail makes drawer entry and exit more flexible and convenient, and allows for inspection, maintenance, or replacement of internal components and wiring without disconnecting the drawer unit from the cabinet.
