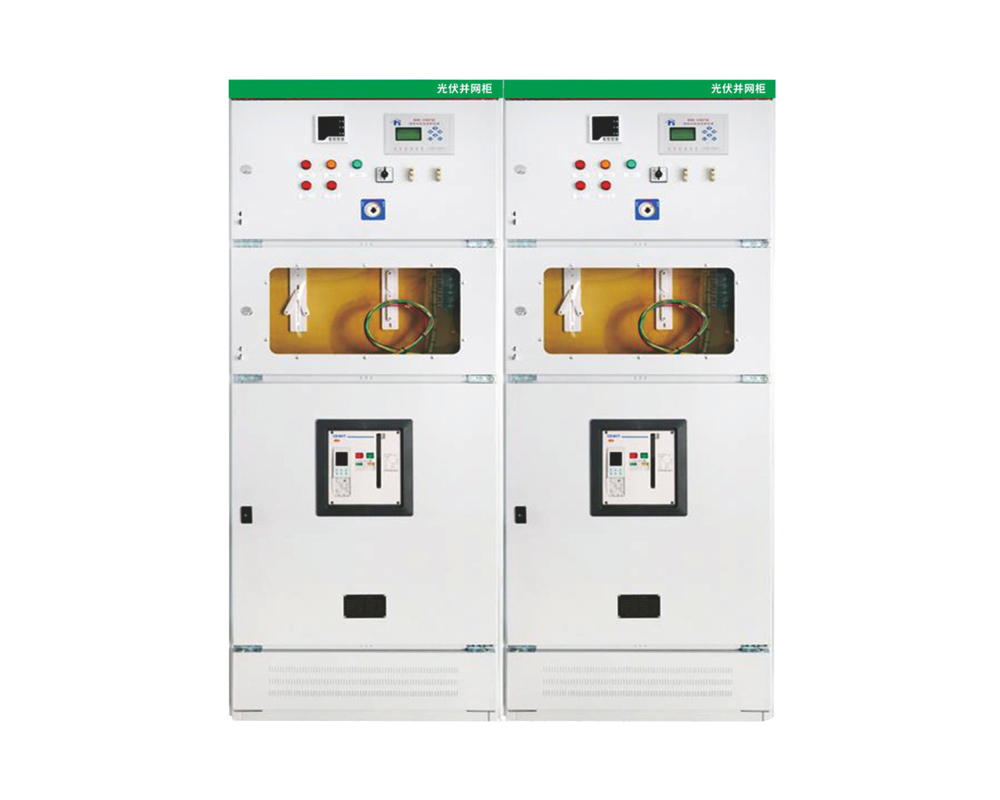

Product Overview

The BWG photovoltaic grid connected cabinet is an important component that undertakes centralized inverters and step-up transformers or AC combiner boxes and step-up transformers. The incoming line of this photovoltaic grid connected cabinet adopts circuit breaker input or direct input, and the output adopts circuit breaker or load isolation switch. The busbar is connected by electroplated or purified busbar, and provides secondary lightning protection. The maximum rated voltage of the system is AC690V, and the protection level is IP40 indoors and IP65 outdoors. For cables with current greater than 2.5mm ², cables with voltage greater than 1.5mm ², and cables with control greater than 1.0mm ², the measuring current transformer is a 0.5 level current transformer, and the measuring current transformer is a 0.2S level current transformer. Relevant functions can also be added according to customer requirements. This product adopts professional electrical design and component selection, making the internal structure of the cabinet safe, simple, beautiful, convenient for on-site wiring and maintenance, and ensuring long-term stable operation of the equipment.

Functional features

● Both fixed installation and plug-in designs can be used;

● The successful unit adopts well-known brand circuit breakers and component combinations, with excellent technical performance, safety and reliability;

● Can be assembled into various standard unit modules for customers to choose and assemble at will;

● Adopting isolation between regions and mutual isolation between functional unit incoming and outgoing lines effectively enhances safety protection performance;

● Combination assembly structure, all structural components of the frame are firmly connected with screws, and the frame, doors, and panels are treated with phosphating and electrostatic spraying. Non spraying parts are all galvanized and passivated. Can meet the requirements of various components and adapt to different working environments, achieving the corresponding protection level;

● The skeleton is made of high-quality steel plate and can have holes with a module of 25mm, which can be expanded for various purposes. There are two ways to enter the wire: upper and lower;

● High breaking capacity, good dynamic and thermal stability, flexible and convenient electrical scheme combination, strong practicality, and main parameters reaching international advanced level;

● Lightweight reset, high mechanical strength and assembly accuracy, beautiful appearance.

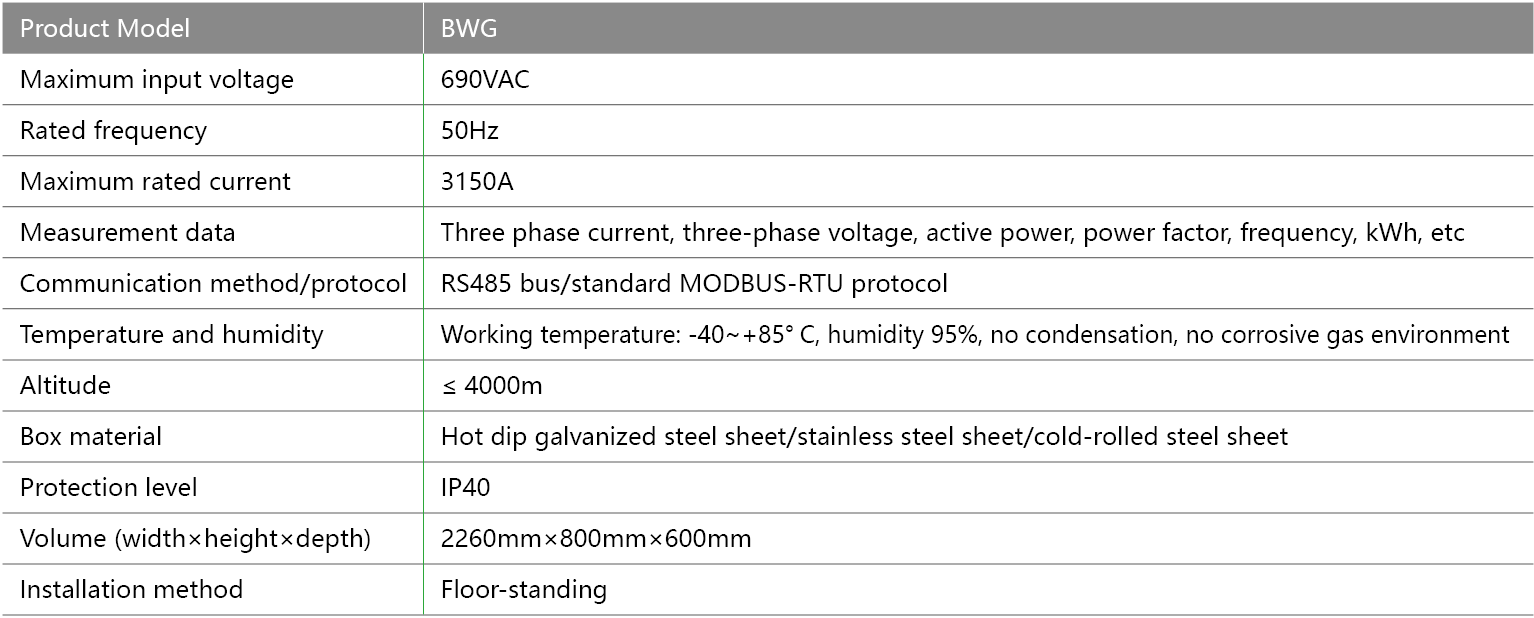

Main technical parameters
