Product Overview

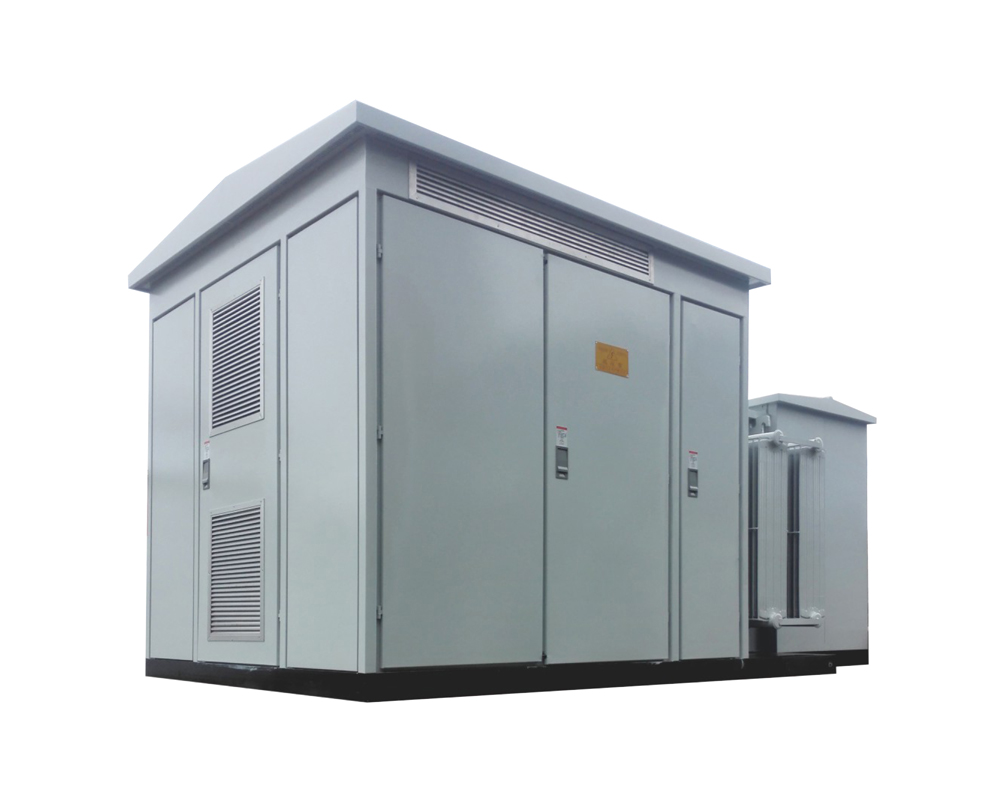

The YBM series 40.5kV prefabricated photovoltaic power station is a complete outdoor equipment that increases the voltage (0.6-0.69KV) generated by the photovoltaic unit to 40.5KV, with a low-voltage side of 0.4-12kV three-phase AC 50Hz. Specialized substation equipment for output after grid connection. It is a box transformer specially designed for photovoltaic power stations by our company according to the requirements of the domestic photovoltaic power generation market. It is an ideal supporting product for photovoltaic power generation systems that integrates reliability, safety, applicability, and economy. It can be divided into independent power generation systems with batteries and grid connected power generation systems without batteries. Solar power generation is divided into solar thermal power generation and photovoltaic power generation. The current commercialized solar energy refers to solar photovoltaic power generation.

Photovoltaic power generation products are mainly used in three aspects: firstly, to provide power for non electric field integration; The second is solar powered daily electronic products, such as various solar chargers, solar street lights, and solar powered lawn lighting fixtures; The third is grid connected power generation, which has been widely promoted and implemented in developed countries.

Normal usage conditions

● Environmental temperature: maximum temperature+40 ℃, minimum temperature -30 ° C.

● Altitude: ≤ 1000m.

● Wind speed: equivalent to 34m/s (not exceeding 700pa).

● Humidity: The average daily relative humidity is not greater than 95%, and the average monthly relative humidity is not greater than 95%.

● Seismic resistance: horizontal acceleration not exceeding 0.4m/s ², vertical acceleration not exceeding 0.15m/s ².

● Installation site inclination: not greater than 3 °.

● Installation environment: The surrounding air is not significantly polluted by corrosive or flammable gases, and there is no severe vibration at the installation site.

● When ordering this product beyond the above conditions, you can negotiate with our company.

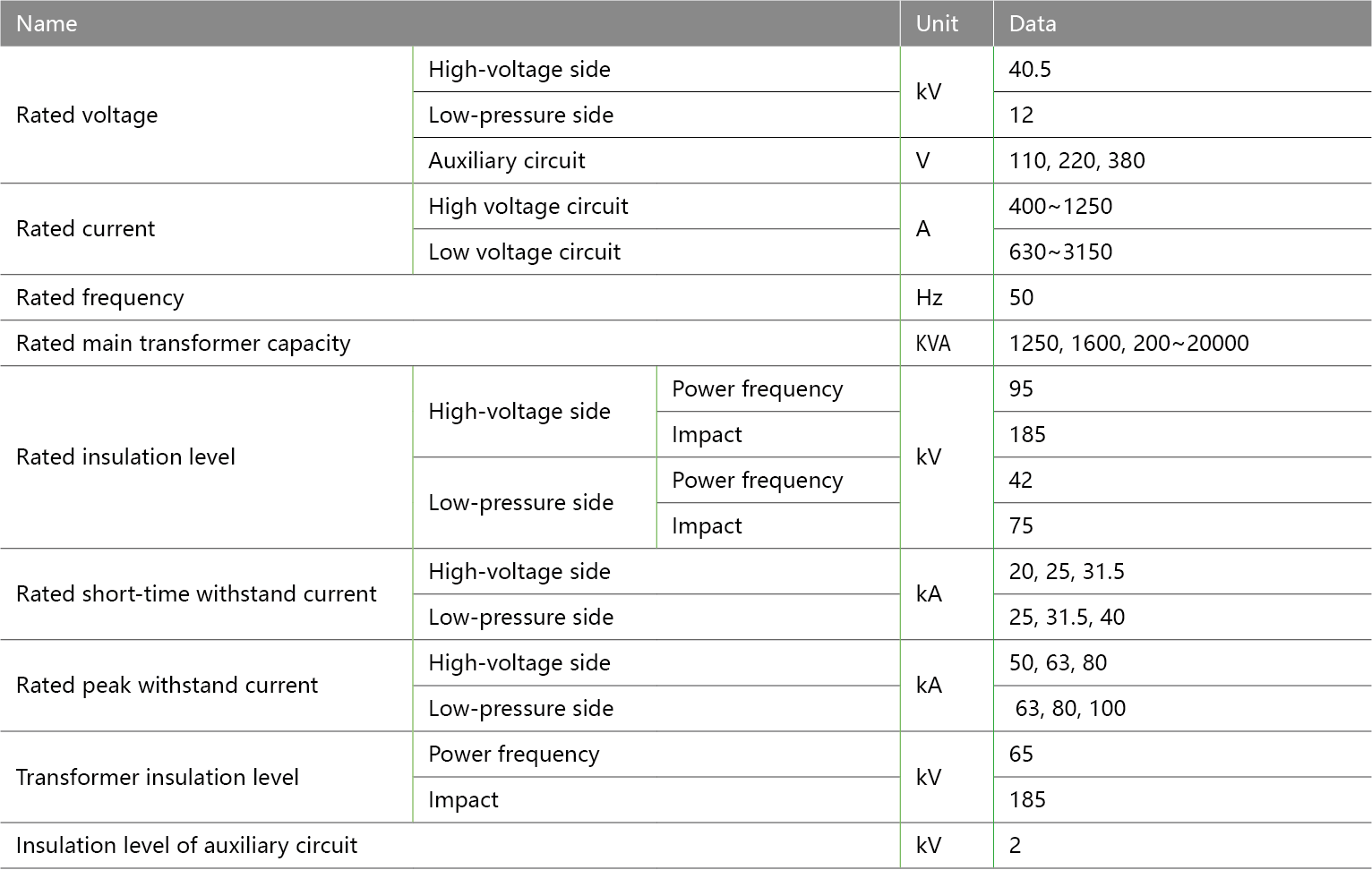

Main technical parameters
